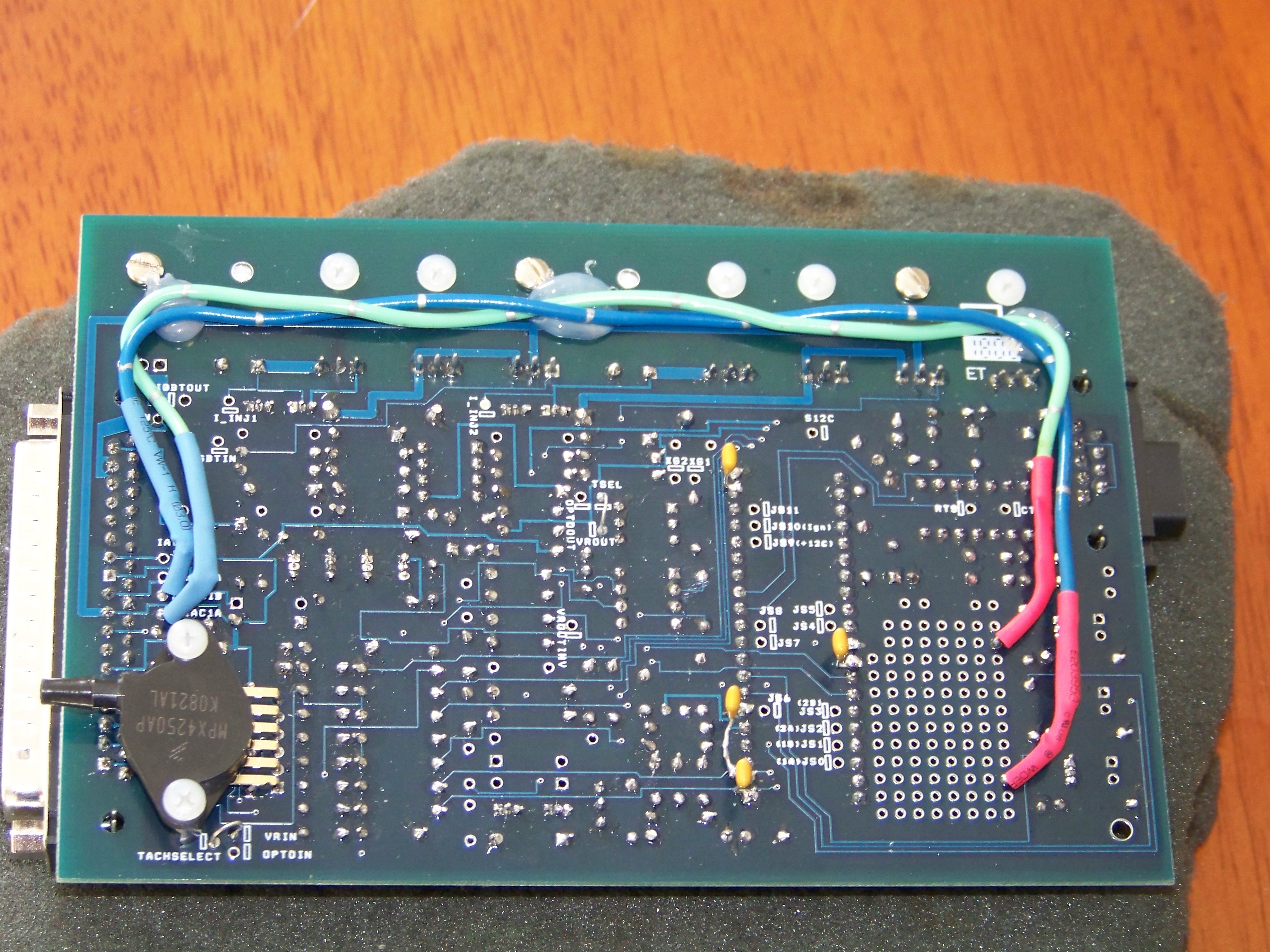

Underside view, note the wires coming off the 330ohm resistors to IAC1A (DB37, pin 25) and IAC1B (DB37, pin 27).
